How does a gas scrubber work?

A gas scrubber is a highly versatile solution for removing pollutants from an air stream, particularly in cases where harmful, toxic, or odorous fumes are present. These pollutants must often be eliminated before the air is released into the environment. Gas scrubbers are widely used in industries such as chemicals, pharmaceuticals, and surface treatment applications.

our scrubbers

How wet scrubbers work

The scrubber operates by bringing the air stream into intense contact with a washing liquid, typically water. During this interaction, highly soluble components are transferred from the air to the liquid through a process known as absorption. The effectiveness of pollutant removal depends on several factors, including the solubility of the contaminants, process conditions, and the duration of contact between the gas and liquid phases.

To minimize liquid consumption, the washing liquid is typically recirculated, with sensors continuously monitoring pollutant saturation levels. When necessary, a controlled purge removes contaminated liquid while fresh liquid is added to maintain optimal scrubbing performance. The most common gas scrubber configuration is the counterflow type, where the gas stream flows upwards while the washing liquid flows downwards, maximizing contact time and efficiency. For specific applications, crossflow and coflow scrubbers can also be used to meet particular process requirements.

What makes a good scrubber?

The washing liquid:

The solubility of pollutants in the washing liquid is a key factor in determining removal efficiency. Water is the most commonly used washing liquid due to its ability to dissolve a wide range of substances. However, for specialized applications, organic liquids such as ethylene glycol may be used to target specific pollutants.

In many setups, water serves as the primary washing liquid, but its effectiveness is enhanced by adding acids (e.g., sulfuric acid) or alkalis (e.g., lime). These additives improve the absorption of acidic and often facilitates the conversion of absorbed compounds into salts, which are typically less corrosive to equipment than the original chemicals.

The gas-liquid interface:

Efficient gas absorption requires intimate and sustained contact between the gas phase and the washing liquid. Achieving this requires careful and precise design of the scrubber tower.

Sufficient contact time between gas and liquid is essential and is greatly enhanced by the use of structured or random packing materials. These packings provide a large specific surface area on which the liquid spreads as a thin film, maximizing the interfacial area and improving mass transfer between the gas and liquid phases.

A wide variety of packing materials are available in different shapes and sizes. Among these, pall rings are widely used due to their high surface area, excellent liquid distribution characteristics, and relatively low pressure drop. These properties make them particularly well suited for efficient and reliable gas scrubbing applications.

Sensing and automation:

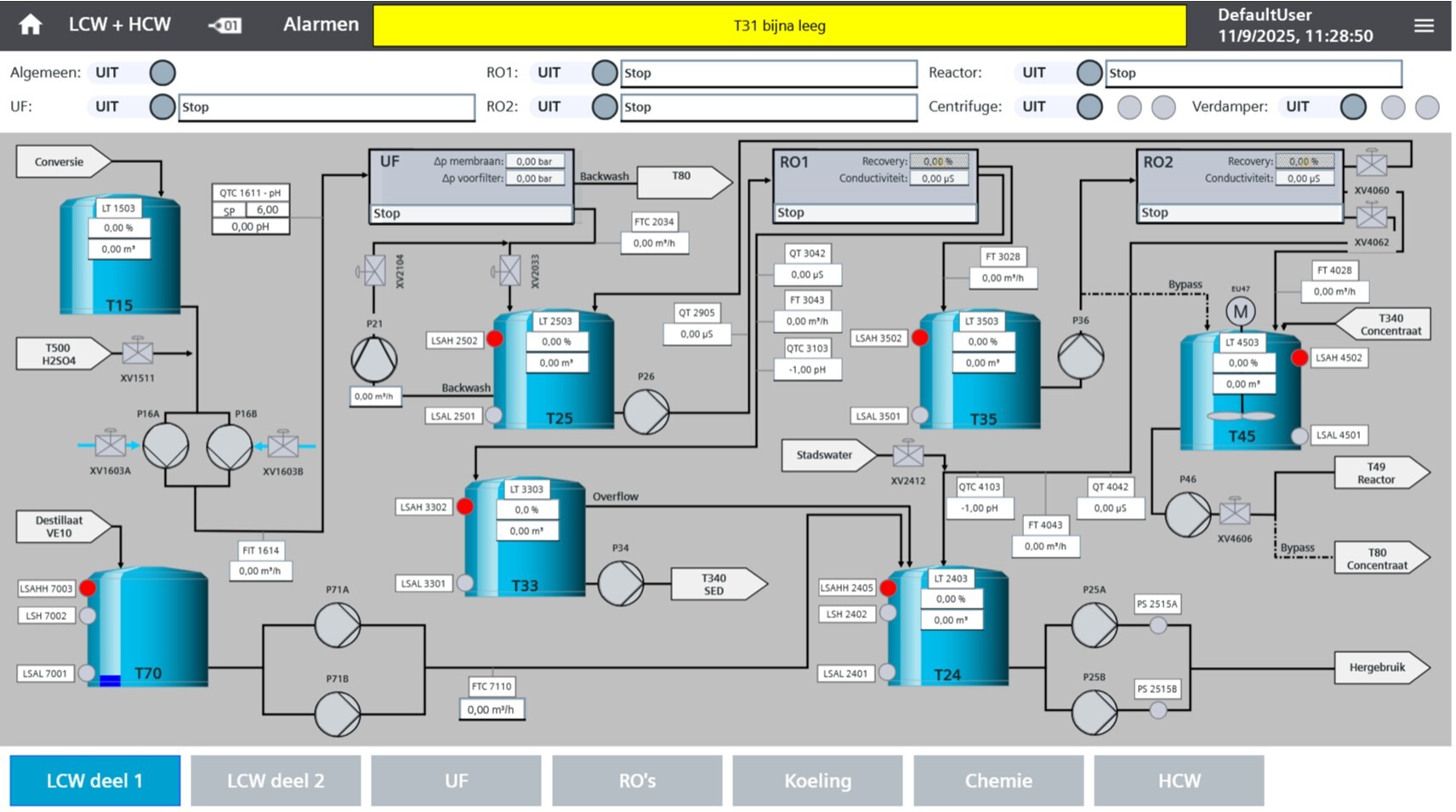

Gas scrubbers are often equipped with a range of sensors that enable real-time monitoring and optimization of the washing process. These sensors play a crucial role in ensuring efficiency, reliability, and minimal resource consumption. Key sensors include:

pH sensors ● Conductivity sensors ● Temperature sensors ● Flow rate sensors

Proper selection and strategic placement of these sensors are essential to ensure accurate measurements under the scrubber’s operating conditions. When integrated with a well-designed control system, they enable the scrubber to operate efficiently, maximizing pollutant removal while minimizing energy, water, and chemical consumption.

Treatment of saturated washing liquid in gas scrubbers

The washing liquid in a gas scrubber must be periodically purged and replaced with fresh liquid as it becomes saturated with pollutants. The handling and disposal of the spent liquid is a critical consideration, ideally addressed during the scrubber design phase. In some cases, careful selection of the washing liquid can even result in the generation of valuable byproducts. For instance, when ammonia is treated with water dosed with sulfuric acid (H₂SO₄), it forms ammonium sulfate ((NH₄)₂SO₄), a nitrogen-rich compound that can be reused as a fertilizer in agricultural applications, providing both environmental and economic benefits.

Why choose PCA Air for your gas scrubber:

At PCA Air we help you decide if a scrubber is the right and most cost efficient air treatment for your process. We select the washing liquid, design, packing and construction materials to match your pollutants and operating conditions. We also supply a complete turnkey system, with sensors, fans and automation, built for easy operation, high performance and smooth integration into your existing process.

Frequently asked questions about scrubbers

How much space is required for a scrubber installation?

The required footprint of a scrubber system is directly related to the airflow rate to be treated and whether a single-stage or multistage configuration is needed.

For smaller applications, a simple single-stage scrubber treating around 1,000 m³/h can have a very compact footprint of approximately 1 × 1 meter.

At the other end of the spectrum, a single scrubber tower designed for an airflow of 100,000 m³/h typically requires a footprint in the range of 5 × 7 meters.

As a general rule, larger airflows and higher removal requirements, especially when multistage systems are involved, will proportionally increase the overall space requirements.

What type of scrubber (packed bed, spray tower, venturi) is best for my application

Packed bed scrubbers are most suitable when pollutants are present purely in the gaseous phase, as they maximize gas–liquid contact and absorption efficiency.

When the air stream also contains solid particles (such as dust or fibers), alternative scrubber configurations are more appropriate as a first treatment step. These include:

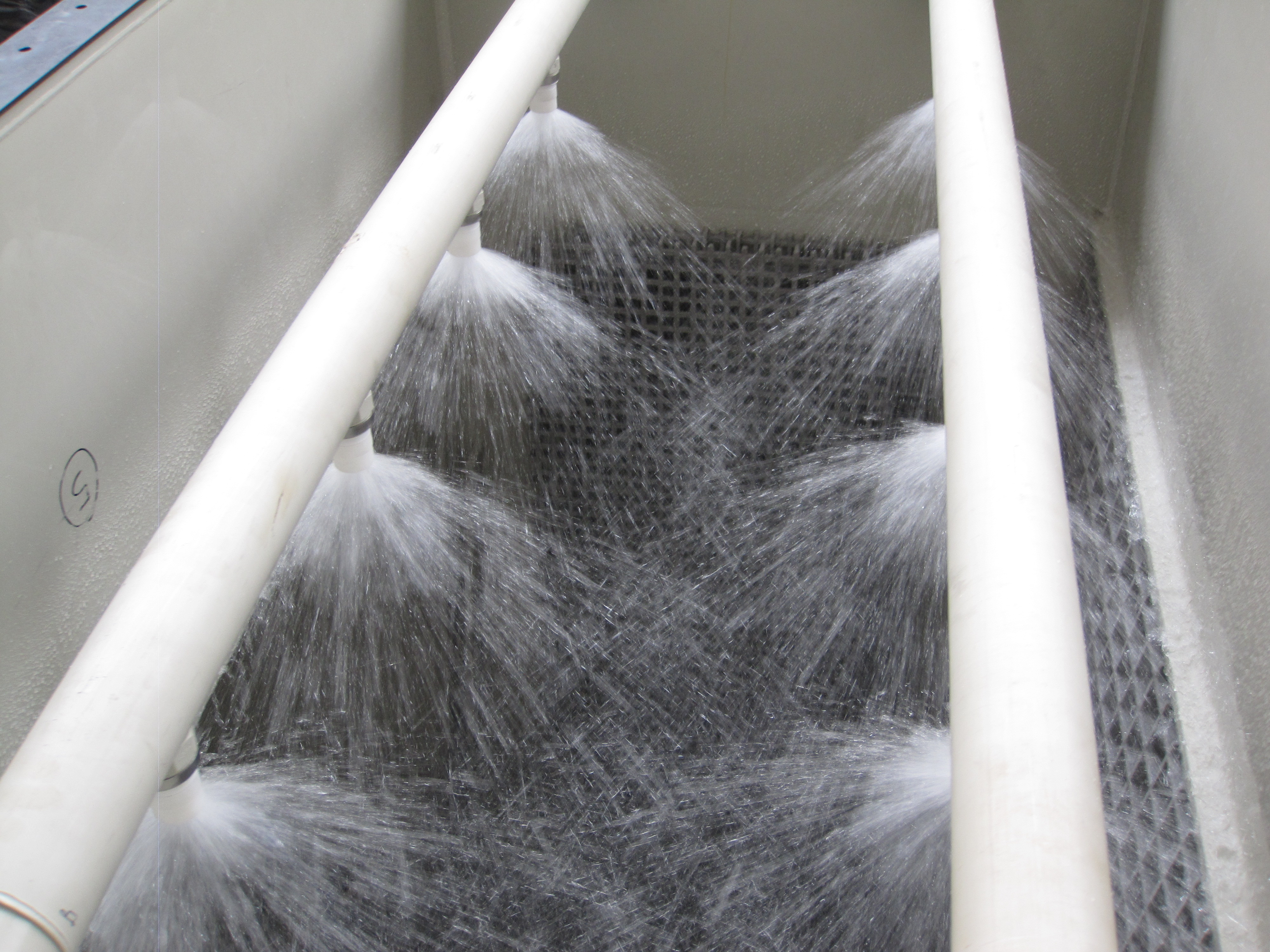

Spray towers (without packing): well suited for the removal of coarse dust and particulates, offering low pressure drop and reduced risk of clogging

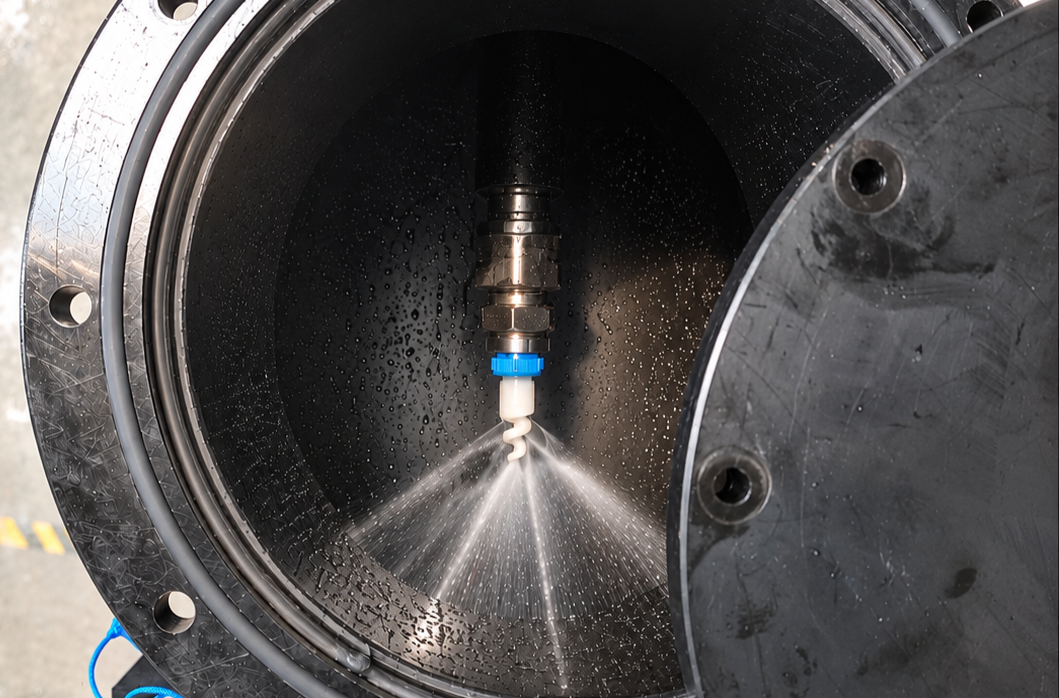

Venturi scrubbers: where the air stream is accelerated through a narrow throat, creating intense mixing; these are particularly effective for the removal of fine dust and aerosols

In applications where both solids and gaseous pollutants are present, a combined approach is often used. Particle removal is first handled by a spray tower or venturi scrubber, after which a packed bed scrubber is installed downstream to efficiently remove the remaining gaseous contaminants.

This staged configuration ensures high overall efficiency, while protecting the packed bed from fouling and maintaining long-term operational reliability.

How do you choose between single-stage and multi-stage scrubbing

Multistage scrubbers become particularly relevant when high inlet pollutant concentrations must be reduced to very low outlet levels. In such cases, a single-stage scrubber may not be sufficient to achieve the required removal efficiency, and multiple scrubbing stages arranged in series provide a more effective solution.

At PCA Air, we perform detailed process simulations to accurately predict scrubber performance for your specific pollutants and concentration ranges. This allows us to assess whether a multistage configuration is necessary and to design the most efficient and cost-effective system tailored to your requirements.

Which pollutants can be effectively removed with a scrubber?

Scrubbers are particularly effective for the abatement of highly water-soluble pollutants. This includes many acids and acid precursors—such as hydrogen chloride (HCl), hydrogen fluoride (HF), and sulphur oxides (SOx)—as well as basic compounds like ammonia and certain organic substances, including alcohols.

Their performance can be further enhanced by dosing appropriate reagents into the washing liquid or by optimizing process conditions, such as the temperature of the incoming air stream.

Scrubbers are highly versatile systems, suitable for a wide range of applications, from small airflows (around 1,000 m³/h) to very large installations (up to 300,000 m³/h). They provide an effective solution across both low and high pollutant loads, making them a robust and scalable choice for industrial air treatment.
