How does an RTO work

A Regenerative Thermal Oxidizer (RTO) is an advanced emissions treatment system widely used in industries such as chemical manufacturing, printing, and painting. It is particularly effective for treating ventilation streams containing Volatile Organic Compounds (VOCs) and offers a low-maintenance, flexible, and highly reliable solution.

An RTO uses high-temperature oxidation to break down pollutants. The process typically operates at temperatures exceeding 800°C, where VOCs react with oxygen to form primarily carbon dioxide (CO₂) and water (H₂O) while releasing heat:

VOCs + O₂ -> CO₂ + H₂O + heat

Although RTOs are most commonly used for VOC treatment, they are in general effective for all pollutants that can be oxidized at high temperatures.

Energy efficiency: what sets an RTO apart

Unlike a direct thermal oxidizer, which relies solely on a burner to heat the air stream to over 800°C, resulting in high energy consumption, an RTO incorporates ceramic heat recovery beds to recapture and reuse heat.

These ceramic-filled canisters absorb and store heat generated during VOC combustion, significantly reducing external energy demand. As a result, RTOs provide superior energy efficiency while maintaining high pollutant destruction rates.

Practical RTO operation

The simplest RTO consists of two ceramic-filled canisters and a combustion chamber. These ceramic beds play a crucial role in capturing and storing heat, significantly improving the system's energy efficiency.

Key Components of a Two-Chamber RTO:

Ceramic canisters: Store and transfer heat between cycles.
Combustion chamber: Where VOCs are oxidized at high temperatures.
Gas burner: Ensures the oxidation temperature is maintained.
Valves: Control airflow direction, allowing heat exchange between cycles.

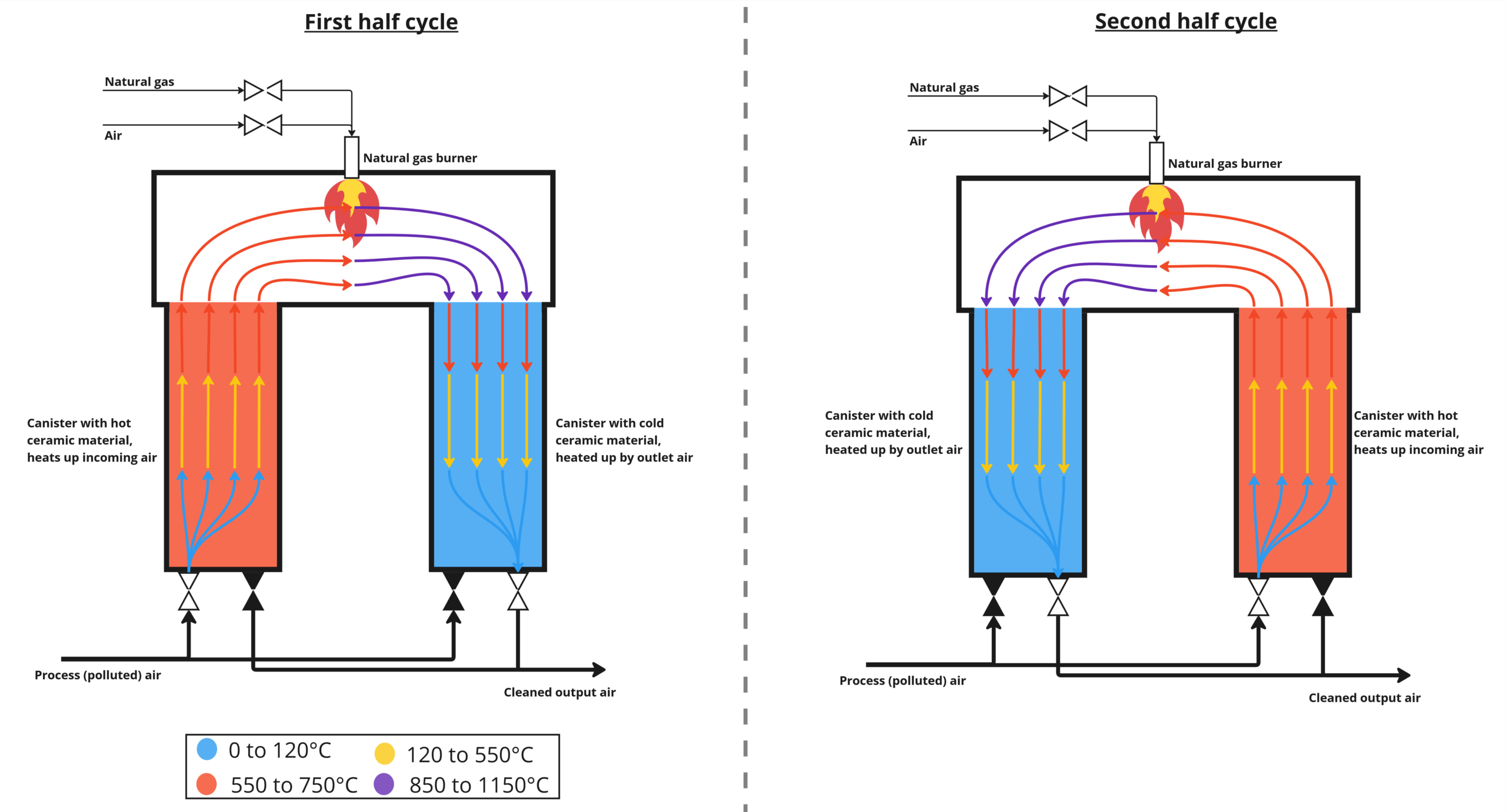

RTO Operation: two-chamber cycling

The RTO operates in continuous alternating cycles to maximize heat recovery and minimize fuel consumption:

First half-cycle:

The inlet air passes through the first canister, which is still hot from the previous cycle.
The hot ceramic media preheats the air before it reaches the combustion chamber, minimizing the additional heat required from the burner.
The post-combustion air exits through the second canister, heating its ceramic media in the process.

Second half-cycle:

Once the first canister cools down and the second canister is hot, the valves switch direction.
The now hot second canister preheats the incoming air, while the first canister reheats via the outgoing hot air.

This switching process repeats indefinitely.

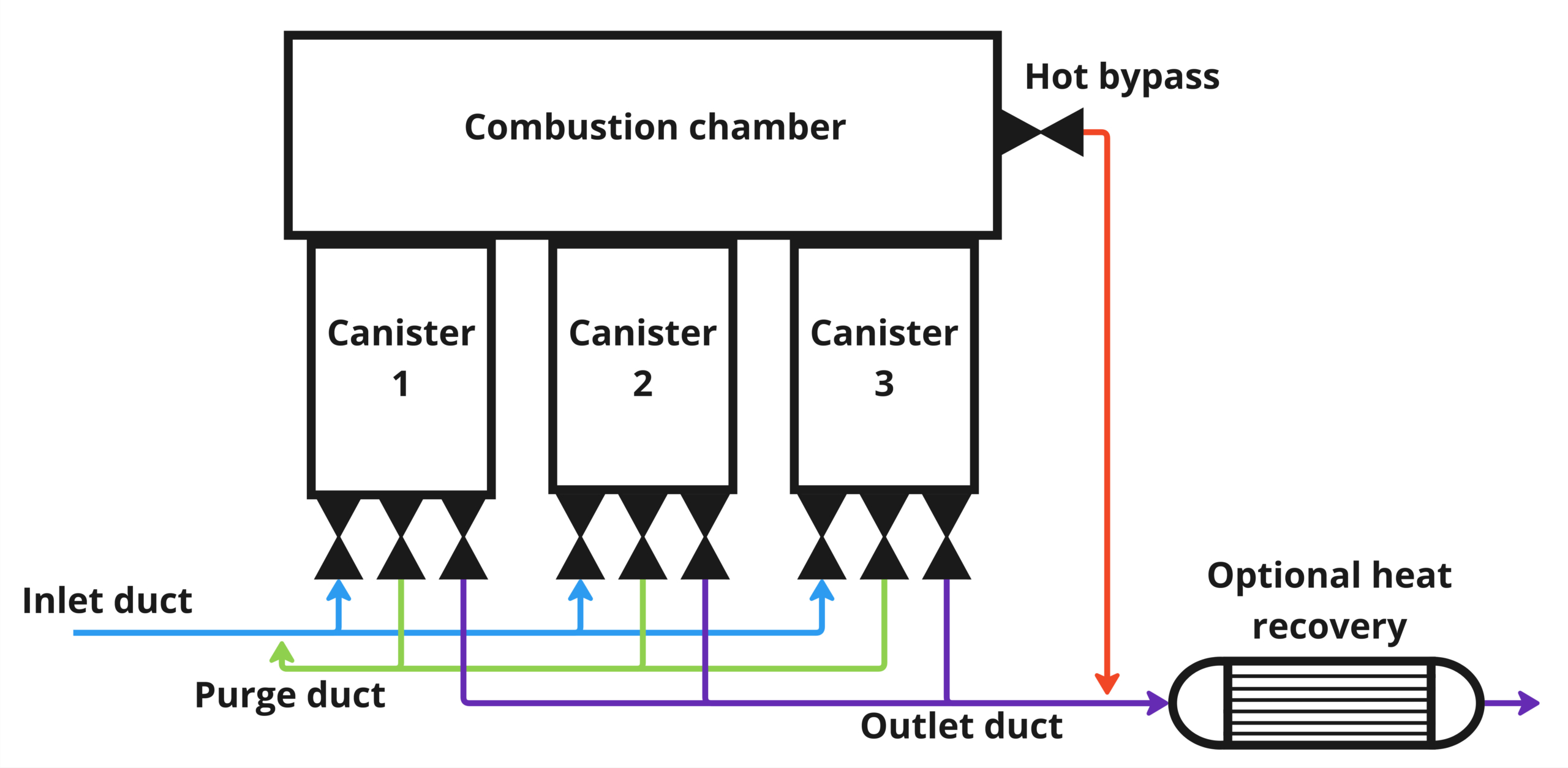

Why industrial RTOs use three or more canisters

While a two-chamber RTO is a simple and effective design, most industrial applications use at least three chambers due to several key limitations of the two-canister system:

Emission spikes during valve switching: In a two-chamber RTO, both the inlet and outlet valves briefly open simultaneously during cycling, allowing unburned VOCs to escape. A third chamber eliminates these spikes by ensuring a continuous flow path, significantly improving emissions control.
Continuous operation & burnout cleaning: A three-chamber system enables one chamber to undergo burnout cleaning (removing organic deposits) while the other two remain in operation, maintaining efficiency without downtime.
Enhanced efficiency & thermal management: The flexibility of a three-canister RTO allows chambers to cycle between heating, cooling, and purging modes more effectively. This results in higher heat recovery, reduced thermal stress, and lower energy consumption compared to a two-chamber design.

Overall, a three-chamber RTO offers superior emissions control, greater energy efficiency, and reduced maintenance, making it the preferred choice for industrial applications. In cases of extremely high airflow volumes, systems with four or five chambers may be used to further optimize performance.

In industrial RTOs, several additional features enhance performance, efficiency, and durability:

Purge duct: A purge duct is typically included to eliminate VOC breakthrough during switching cycles and to facilitate burnout procedures for removing organic buildup.
Hot bypass: An optional hot bypass protects the system from overheating by diverting excess heat when necessary.
VOC concentration & pretreatment: Upstream of the RTO, VOC concentration systems can be implemented to enable autothermal operation, reducing fuel consumption. Additionally, pretreatment units such as gas scrubbers may be used to protect the RTO from acidic or corrosive components.
Heat recovery & post-treatment: Downstream of the RTO, heat exchangers can be installed for energy recovery, improving overall efficiency. Post-treatment systems may also be added to remove specific pollutants, such as halogenated compounds, ensuring compliance with environmental regulations.
Alternative energy sources: While natural gas burners are commonly used, other heating sources are available, including propane (ideal for areas without natural gas access), biogas (from local production facilities, promoting sustainability) or fully electric RTOs (offering a fossil-free alternative).

These enhancements optimize RTO performance, ensuring efficient operation, lower emissions, and extended system lifespan.

Autothermal operation: maximizing efficiency

A significant portion of the heat generated during VOC combustion is captured and stored in the ceramic heat recovery media. This stored energy is then used to preheat the incoming air stream, reducing the need for external heating. If the VOC concentration in the air stream is high enough, the stored heat alone can raise the air temperature to the required oxidation temperature, eliminating the need for additional fuel input. This condition is known as autothermal operation.

Operating an RTO in autothermal mode is highly desirable, as it:

Eliminates the need for natural gas or other auxiliary fuels
Minimizes operating costs
Reduces carbon footprint and energy consumption

As a general guideline, a VOC concentration of approximately 2 g/Nm³ is sufficient for autothermal operation. However, the exact threshold depends on the specific VOC composition—for example, methane has a lower autothermal concentration than many other organic compounds.

Optimizing VOC Concentration for Autothermal Functioning

If the process does not naturally produce an air stream with sufficient VOC concentration, it may be possible to optimize airflow to achieve autothermal conditions. One effective strategy is to incorporate an LEL sensor in the ventilation system. Based on the input from this sensor, the fan power can be controlled through a frequency drive hence adjusting the air flow rate to keep VOC concentration above autothermal level. Such systems allow to minimize fuel consumption and maximize overall system efficiency.

Managing excess heat: hot bypass and heat recovery

When the VOC concentration in the air stream significantly exceeds the autothermal threshold, the combustion process generates more heat than the ceramic media can safely store. This excess heat must be managed to ensure stable and safe operation of the RTO.

To prevent overheating of the ceramic beds in this case, the RTO must be equipped with a hot bypass duct. This bypass allows a portion of the hot air from the combustion chamber to be directly purged to the exhaust stack, bypassing the heat recovery canisters. This prevents thermal damage to the ceramic media while maintaining operational stability.

Utilizing Excess Heat: Heat Recovery Systems

When excess heat is present, it presents an opportunity for energy recovery, reducing overall site energy consumption and operating costs. A heat exchanger can be installed in the outlet duct, past the hot bypass, to recover excess heat in the form of:

Hot air – Preheating incoming air for other processes.
Hot water – Supplying heated water for industrial or facility use.
Steam – Providing steam for heating or production processes.
Hot oil – Supporting thermal fluid systems.

By integrating heat recovery, an RTO not only controls excess heat but also enhances energy efficiency, making it a cost-effective and sustainable solution.

Burnout: preventing deposits & maintaining efficiency

In certain applications, sticky organic particles or compounds prone to polymerization can accumulate on the inlet sides of the ceramic canisters or in the colder zones of an RTO. These deposits can lead to:

Increased pressure drop, raising fan energy consumption.
Reduced heat exchange efficiency, diminishing system performance.
Potential blockages, affecting airflow and system reliability.

To prevent and remove such deposits, an RTO can be equipped with a burnout process. During burnout, the lower sections of the ceramic canisters are heated to temperatures exceeding 400°C —above the gasification temperature of the residue. This process effectively burns off organic deposits, restoring heat exchange efficiency and maintaining system performance.

Since an RTO typically operates with three ceramic canisters, burnout is performed on one canister at a time, while the remaining two continue their normal cycling process. This ensures that RTO performance is not disrupted during burnout. By integrating a burnout cycle, an RTO remains efficient, reducing pressure losses, fan energy consumption, and maintenance requirements, leading to a more reliable and cost-effective operation.

Pretreatment: protecting the RTO for long-term efficiency

To ensure optimal performance and longevity of an RTO, it is essential to remove harmful contaminants from the incoming air stream before treatment. Proper pretreatment helps prevent damage, reduce maintenance needs, and enhance overall efficiency.

1. Particulate Removal: Preventing Clogging & Wear

Excessive amounts of dust and solid particles can accumulate in the ceramic media, leading to:

Blockages and increased pressure drop, raising energy consumption.
Reduced heat exchange efficiency, diminishing performance.
Higher maintenance requirements due to fouling.

To prevent these issues, dust filtration systems are used, including:

Dry filtration (e.g., baghouse filters, cyclones, electrostatic precipitators) – Captures fine and coarse particulates.
Wet filtration (e.g., wet scrubbers, mist eliminators) – Removes sticky or hygroscopic dust.

2. Chemical Neutralization: Protecting Ceramic Media

Certain chemical compounds can be highly aggressive toward the ceramic media in the RTO canisters, leading to degradation and reduced lifespan. The most problematic compounds include:

Fluoride-containing compounds – Can cause ceramic corrosion.
Sulfur-containing compounds (e.g., SO₂, H₂S) – May lead to acid formation and material breakdown.

To neutralize these compounds before they enter the RTO, pre-scrubbing systems are employed:

Dry scrubbing – Uses alkaline sorbents (e.g., sodium bicarbonate, lime) to neutralize acidic gases.
Wet scrubbing – Employs liquid solutions to absorb and neutralize harmful compounds.

By implementing proper pretreatment, operators can significantly extend the lifespan of the RTO, maintain efficient operation, and reduce maintenance costs. Tailoring the pretreatment system to the specific air stream composition ensures that the RTO functions safely, reliably, and cost-effectively.

Posttreatment: ensuring compliance and air quality

An RTO is highly effective at oxidizing VOCs into carbon dioxide (CO₂) and water (H₂O). However, when halogenated compounds or other inorganic pollutants are present in the inlet air stream, they can form new byproducts during oxidation. For example, chlorinated VOCs (e.g., chlorinated solvents) in the inlet stream are typically oxidized into hydrogen chloride (HCl), which remains in the outlet air. If the concentration of these byproducts is too high, it can exceed emission limits and require further treatment before release.

To remove harmful byproducts and ensure compliance with environmental regulations, common posttreatment methods include:

Wet Gas Scrubbers – Uses a liquid absorbent (e.g., alkaline solutions) to neutralize acid gases such as HCl, HF, or SO₂ before release.
Activated Carbon Treatment – Adsorbs residual organic compounds, halogens, or other pollutants from the air stream.

By integrating appropriate posttreatment solutions, RTOs can efficiently handle a wider range of pollutants, ensuring both regulatory compliance and minimal environmental impact.

Why choose PCA Air for your RTO system:

At PCA Air we help you decide if a regenerative thermal oxidizer fits your process and give CAPEX and OPEX estimates for a sound investment. We prepare your process for RTO treatment, including VOC concentration to cut energy use. With our sister companies Proceq and PCA Control we design, engineer and deliver complete turnkey systems, with pretreatment, post treatment, fans, ducting and automation, built for low cost, high reliability and little maintenance.

Frequently asked questions about RTO's

Can an RTO handle fluctuating flow rates and varying pollutant loads

RTOs can be designed with a high degree of flexibility, allowing operation over a wide range of airflow rates—typically down to as low as 10% of the design capacity. As a result, fluctuating flow rates can be handled without compromising performance.

To manage variations in pollutant load, RTOs are equipped with automated temperature control systems, supported by auxiliary burners and/or hot bypass configurations. These features ensure that the system consistently maintains its required operating temperature, regardless of changes in inlet conditions.

What minimum and maximum VOC concentrations are suitable for an RTO?

While there is no strict minimum concentration for RTO operation, the technology typically becomes most advantageous from concentrations of around 2 g/Nm³, where the system can operate autothermally and external fuel consumption is minimized or eliminated.

RTOs are capable of handling high pollutant loads, including concentrations of several tens of g/Nm³ for short periods, provided the system is appropriately designed and safeguarded.

However, when pollutant concentrations are consistently very high, alternative technologies—such as recuperative thermal oxidizers or direct thermal oxidizers—may offer a more suitable and cost-effective solution.

Which types of pollutants can be treated effectively in an RTO?

RTOs are most suitable for the treatment of organic compounds composed primarily of carbon, hydrogen, and oxygen. This includes substances such as butadiene, toluene, alcohols, esters, and aldehydes, which can be destroyed very efficiently through thermal oxidation.

Halogenated organic compounds (e.g., those containing chlorine or fluorine) can also be treated in an RTO. However, their oxidation leads to the formation of strong acids (such as HCl or HF), which typically requires the integration of appropriate post-treatment systems downstream of the RTO.

In contrast, inorganic compounds, often acidic in nature—such as SOx, HCl, and HF—are not affected by the thermal oxidation process and will pass through the system untreated. A similar limitation applies to most types of PFAS, which generally require significantly higher destruction temperatures than those achievable in standard RTO operation. As a result, these substances are either not destroyed or only partially decomposed in an RTO.

When is an RTO the right solution compared to a scrubber of activated carbon?

A scrubber is a highly effective solution for a wide range of compounds—typically acids and/or bases—that are readily water-soluble and can be neutralized through the addition of suitable reagents to the scrubbing liquid. Scrubbers offer a robust and cost-effective solution across both low and high pollutant loads.

Activated carbon is particularly well suited for the treatment of non-polar pollutants at relatively low concentrations. However, because the carbon must be replaced or regenerated once saturated, it often results in higher operating costs per unit of pollutant removed, making it less economical for higher pollutant loads.

An RTO is an excellent solution for treating non-water-soluble, typically non-polar organic compounds present at higher concentrations where activated carbon becomes economically unviable. Unlike scrubbers, which generate wastewater, or activated carbon systems, which require disposal of spent media, RTOs do not produce a secondary waste stream. Instead, they thermally oxidize organic pollutants into carbon dioxide and water, which can be safely released into the atmosphere.
